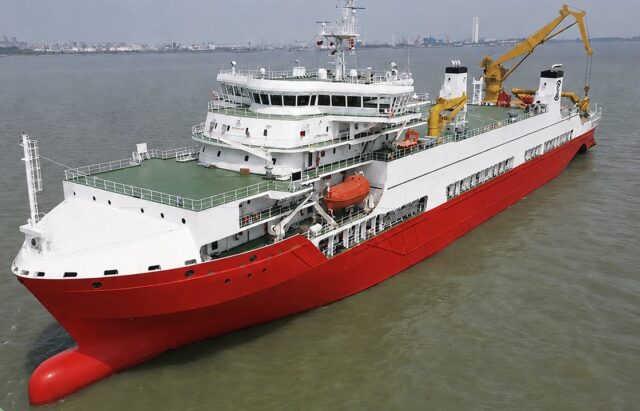

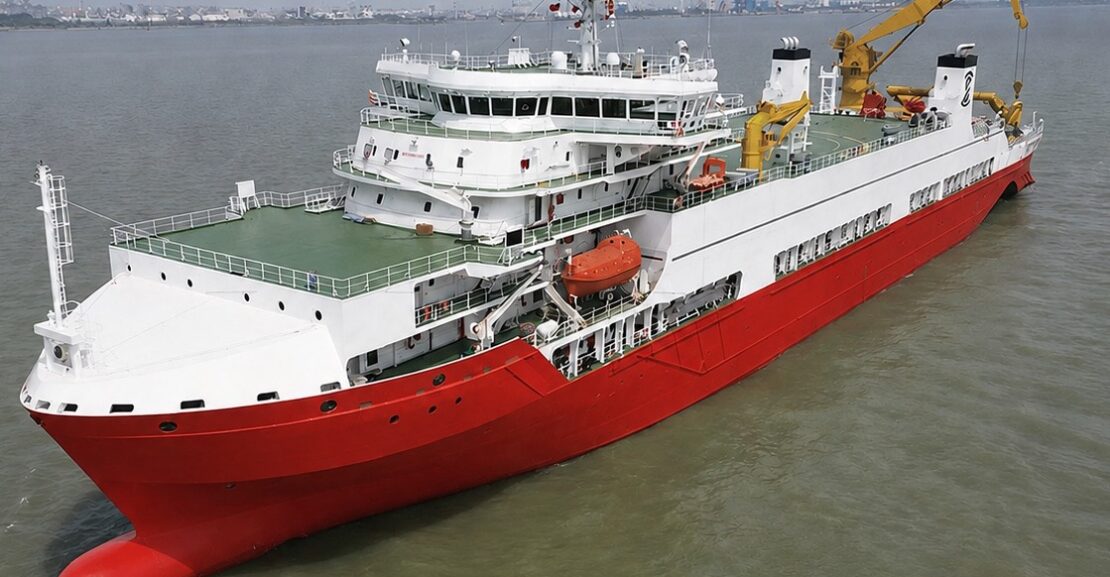

This DP2 cable-laying and pipe-laying vessel has an LOA of 155 m, a breadth of 23.2 m, a depth of 12.8 m and an operating draught range of 5.6–7.2 m. The vessel has a load displacement of 20,278 t, a DWT capacity of 11,400 t, fuel capacity of 2,400 m³ and FW capacity of 1,000 m³. Operational speed is stated as 10.5–12.5 kn, endurance is approximately 10,000 nm, and accommodation is provided for 90 persons.
The vessel’s diesel-electric power plant comprises six main gensets rated at 2,250 kW each, providing a combined installed generating capacity of 13,500 kW. The electrical distribution system operates at 6,600 V and 400 V. Propulsion and manoeuvring arrangements comprise one FPP rated at 3,600 kW, two ZTP units rated at 2,500 kW each and three FP units rated at 1,800 kW each. DP capability is provided by a Kongsberg DP2 system, supporting controlled station keeping and vessel positioning during cable-laying, pipe-laying, ROV, burial and related subsea operations.
The cable-jointing facilities include a sealed workshop covering approximately 2,000 m², a dedicated jointing room of 130 m² and a testing room of 30 m². The equipment-hoisting entrance measures 3 m × 2 m, while RP storage is arranged through 44 × 3 storage tanks. These facilities support onboard cable preparation, jointing, testing, handling and protected storage during extended offshore installation campaigns.
The principal deck crane is rated at 80 t at 15 m, 60 t at 20 m and 20 t at 30 m. An additional 5 t marine crane provides a lifting capacity of 5 t at 15 m, including a personnel-handling rating of 1.5 t. The towing winch has a driving tension of 80 t and a constant-tension operating range of 10–80 t. Its operating performance includes 80 t at 25 m/min and 40 t at 50 m/min. Cable load capacity is stated as Ø 56 mm × 3,300 m.
The vessel incorporates two cable tanks, each with a capacity of 3,500 t, an OD of 19 m and an inner-core dia. of 3 m. Cable loading capacity within the tanks includes approximately 5,800 km of LW cable at 17 mm and approximately 680 km of DA cable at 39.4 mm. A separate carousel provides an additional capacity of 3,000 t, with an OD of 17 m, an inner-core dia. of 3.5 m and drive power supplied by five 75 kW units. The stated carousel cable capacity includes approximately 38 km of 3 × 800 mm², Ø 186 mm cable and approximately 750 km of Ø 70 mm cable.
Cable deployment and recovery operations are supported by a stern A-frame with a dynamic load rating of 800 kN and a static load rating of 1,200 kN. The A-frame provides a max. lifting height of 13 m, an inner width of 13 m, a max. outboard span of 15.5 m and a tilt/elevation range from +75° to −71.78°. The stern roller-sheave arrangement comprises two power-cable rollers, two umbilical-cable rollers and one towing-cable guide trough.
The CDE operates at selectable speeds of 60 m/min, 120 m/min and 180 m/min. It has a drum dia. of 4 m, a tension rating of 50 t, rated power of 350 kW and a cable dia. operating range of Ø 12–300 mm. The wheel-type LCE system provides operating performance of 210 kN at 60 m/min, 105 kN at 120 m/min and 52.5 kN at 180 m/min. It incorporates 21 pairs of wheels and accommodates cable dia. ranging from Ø 12 mm to Ø 300 mm.
An additional LCE arrangement provides operating performance of 10 kN at 60 m/min, 5 kN at 120 m/min and 2.5 kN at 180 m/min. The system can be configured with 2, 4, 5 or 6 pairs of wheels and is suitable for cable dia. ranging from Ø 12 mm to Ø 300 mm. Together, these cable engines provide controlled tensioning, paying out, recovery and transfer of multiple cable sizes during installation operations.
The vessel’s subsea spread includes a large work-class ROV rated at approximately 895 kW, with an operating depth of 3,000 m. Its stated capabilities include module assembly, PLIB operations, trenching and burial, together with underwater grasping capacity of 2 t. A smaller ROV rated at approximately 75 kW also has an operating depth of 3,000 m and incorporates a multifunction mechanical manipulator for observation and wet plug/unplug operations.
The trailing and cutting burial plough is equipped with approximately 522 kW of power per wheel set. It is designed for burial depths of 2.5–3.5 m and operating water depths of 10–1,000 m, with capability for cutting through clay and sand. The jetting burial plough is rated at approximately 895 kW, provides burial depths of 3–5 m, and is designed for operating water depths of 10–300 m. Its arrangement includes auxiliary steering to support subsea cable-routing and burial operations.
The combination of substantial cable storage, dedicated jointing and testing spaces, DP2 station keeping, high-capacity cable engines, stern deployment equipment, work-class ROV capability and complementary cutting and jetting burial systems makes the vessel suitable for offshore power-cable, telecom-cable, umbilical and related subsea installation scopes.
Admiralty Disclosure and Compliance Notice:
All full/ original Vessel (“Asset”) specifications, documentation, and related ownership details shall be disclosed strictly and exclusively Only to Qualified, Named End Buyers or Chartering Parties. Such disclosure shall be contingent upon the prior execution and submission of a duly completed Non-Circumvention, Non-Disclosure Agreement (NCNDA), together with a verifiable Bank Comfort Letter (BCL) issued by a recognized and reputable international FDIC financial institution – confirming the qualified Buyers or Chartering Party financial capabilities.
Horizon Offshore Services, together with its affiliated and subsidiary entities under the authority of its Board of Directors, conducts all ship sale, purchase and/ or chartering advisory activities in accordance with the highest Admiralty English & U.S. Laws standards of professional integrity, transparency, and due diligence to ensure a secure and compliant BIMCO/ ICS transaction process.
Disclaimer:
HOS offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A Buyer should instruct his agents, or his surveyors, to verify all details, as per Buyer desires (project/ scopes of work) in due course.
This vessel is offered subject to availability, price change, or withdrawal without notice.
