Type AR-F9134 Floating Dry Dock

3

$1 M

SPECS Images Steel Renewal Images

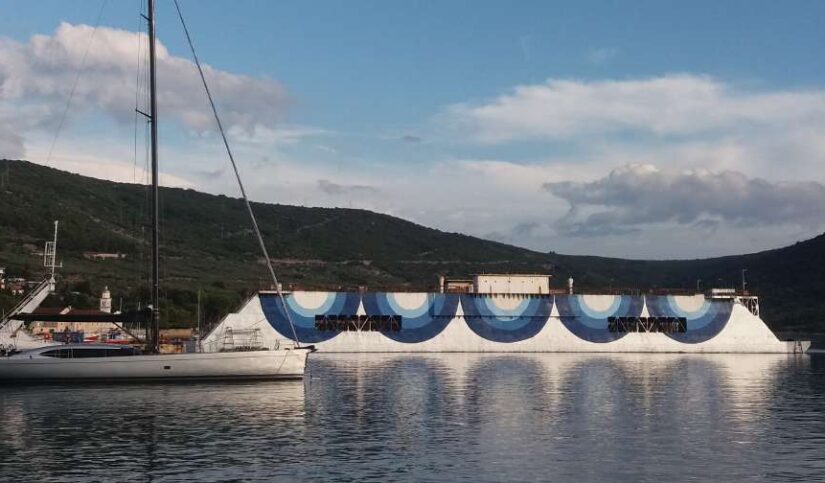

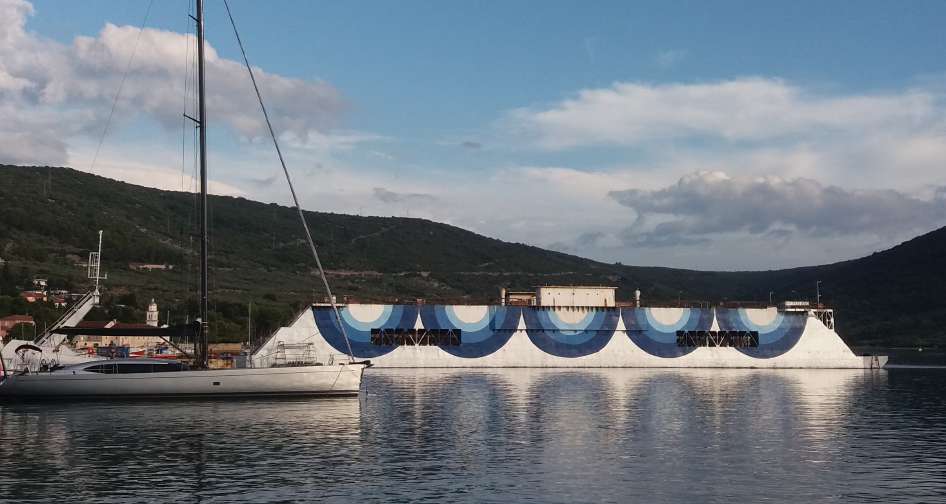

The floating dock, built in the 1940s and located in the Mediterranean, has a lifting capacity of 1,000 (TLC) and has been well-maintained by current owners. Its overall length (LOA) is 100.5 m, with a scantling length of 94.5 m. The moulded breadth is 16.6 m, while the width between wing walls measures 10.6 m in the lower section and 12.5 m in the upper section. The inner height of the wing walls reaches 7.4 m, with a pontoon deck height of 2.0 m and a moulded depth of 9.1 m. The dock has a scantling draught of 1.0 m, a block coefficient of 0.9, and typical web frame spacing of 0.775 m.

The unit was put into conservation mode at the end of 2020 and remains in relatively good condition. The last Ultrasonic Thickness Measurement (UTM) was conducted on 18.11.2019 by request of the IACS class, with documentation available. The latest underwater hull survey in 2022 yielded satisfactory results.

Disclaimer:
HOS offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A Buyer should instruct his agents, or his surveyors, to verify all details, as per Buyer desires (project/ scopes of work) in due course.
