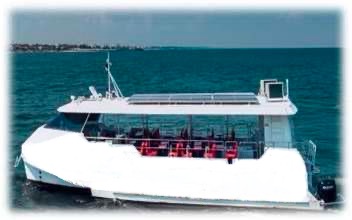

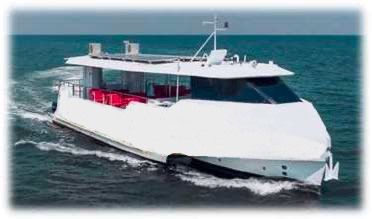

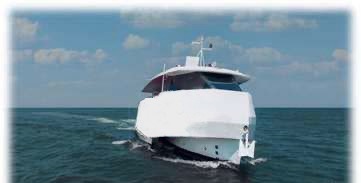

This IRS-classed glass bottom passenger vessel is constructed in aluminium 5083 H111 and is designed to accommodate up to 50 pax with 4 crew. The vessel has an LOA of 16.54 m (excl. OBMs: 16.26 m), a beam of 5.80 m including sponsons, and a depth to main deck of 2.70 m. Her SDL draft is 1.38 m, with an SDL displacement of 35 t. Propulsion is provided by 2 x Suzuki OBMs rated at 200 hp each (total 400 hp), delivering a max speed of 12 kn.
The vessel features a bow thruster and genset, each rated at 6 kW, and is fitted with an 800 Ah lithium battery bank. Fuel capacity is 2 x 300 L, with fresh water storage of 2 x 1,000 L and sullage capacity of 1 x 500 L. A 12 t ballast system is also installed.
The FRP canopy structure is supported by SS piping, and the watertight glass bottom is designed for coral viewing. Deck gear includes a 50 kg SHHP anchor with winch, a 2 m chain and 30 m rope, 4 aluminium bollards, and a 100 mm rubber rub rail mounted with SS hardware. UV-resistant cushioned seating with dining arrangement is provided for all passengers.
The vessel is equipped with firefighting systems including 6 x 5 kg DCP extinguishers, fire alarm, 32NB hydrant, 60 ft hose with spray jet nozzle, a sand scoop (0.075 Cum), and buckets. Lifesaving appliances include 55 adult and 6 child lifejackets, 2 life buoys with SI lights, and 2 x 25-pax liferafts mounted on the foredeck.
Navigation and communication systems include VHF, GPS, radar, echo sounder, compass, binoculars, rudder angle indicator, nav. searchlight, SART, and AIS type B. The vessel is fully fitted with IRS-approved cabling and panel boards, LED lighting, 4 x 200 Ah lithium batteries, and 2 x electric toilets. Fuel and water tanks are of marine-grade aluminium, with full plumbing and pump systems installed.
This vessel is capable of operating in sea conditions up to 2.5 m wave height, making her well-suited for nearshore coral reef tours and coastal sightseeing operations.
