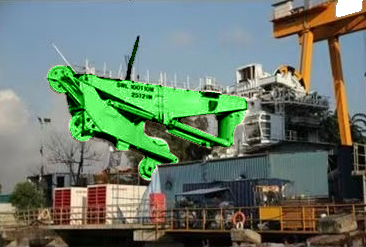

This 100 Ton knuckle boom crane, designed in accordance with ABS standards, is a high-performance offshore lifting solution suitable for subsea operations, cargo handling, and man-riding applications. Its versatile capabilities and robust design make it ideal for deepwater projects, offering excellent reliability and safety.
Key Features:
* Safe Working Load (SWL):
* 100 tons at 10 meters outreach
* 25 tons at 21 meters outreach
* Max Outreach: 22 meters
* Working Depth: Up to 3,000 meters
* Man-Riding Capability: Yes, designed for personnel lifting
* Total Weight: Approx. 290 tons
* Design Temperature: -10°C to +50°C
* Location: TBD
* Delivery: Prompt delivery in AlWI condition, with 3–4 months lead time (subject to availability of spares)
Performance Specifications:
* Lifting Speed: Up to 110 m/min (main hoist)
* Hook Travel: 60 meters
* Active Heave Compensation (AHC): Ensures stable subsea operations with ±1.5m displacement and a max compensation speed of 1.8 m/s
* Slewing Speed: 0–1.0 RPM (continuous 360° rotation)
* Luffing Speed: 0–60 seconds (average)
Power System:
* Total Power: 2,100 kW
* Includes 4 main hydraulic pump motors (2 × 550 kW and 2 × 315 kW)
* Auxiliary motors for support systems, totaling 265 kW
* Main Power Supply: 690V, 60Hz, 3-phase
* Auxiliary Power Supply: 230V, 60Hz, 3-phase
* Emergency Power Supply: 57 kW
Safety and Operational Features:
* Pedestal Height: 12.5 meters
* Pedestal Diameter: 4.02 meters
* Classifications: ABS and DNV
* Floodlight and Aircraft Warning Light: Mounted on boom tip
* Control Station: Mounted on crane upper column with full system controls
* Slip Ring: Yes, included for continuous electrical connectivity
Price: US$ 5 million (Fully reactivated with warranty)
This crane is a cost-effective solution for high-capacity offshore lifting, with the added benefit of being fully reactivated and available for immediate deployment within 3–4 months. With its ABS design and versatile features, it is well-suited for various offshore and subsea lifting applications.
Disclaimer:
HOS offers the details of this equipment in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the equipment. A Buyer should instruct his agents, or his surveyors, to verify all details, as per Buyer desires (project/ scopes of work) in due course.
This equipment is offered subject to availability, price change, or withdrawal without notice.
This 2014 100 Ton Knuckle Boom Crane, ABS Classed, offers a SWL of 100 tons at 10 meters and 25 tons at 21 meters, with a maximum outreach of 22 meters and a working depth of 3,000 meters. Fully reactivated with a total power of 2,100 kW, it includes man-riding capabilities and is priced at US$ 5 million, with delivery in 3–4 months subject to the availability.
